All Lit Up

From quite an early conversation with the team, the intention had been for the vesicles to be lit up, but what was less clear was how this was to be achieved. We had discussed how it would be great for the lighting to change throughout the day, both to compensate for the piece being placed in a position without natural light (the CRF waiting areas are not naturally lit) and also to add interest to the piece.

I liked the idea of internal lighting and a transition across the day, finding it wonderfully consistent with the idea of a traditional diorama, as these often included their own interior lighting to draw in the viewer. One of the big questions for me, though, was how to programme the timings on the lighting, not being particularly competent in that area.

I did briefly learn how to use Arduinos, but it was a while ago and I would have had to start again from scratch to make it work. Also, all the restrictions of Covid made it harder to contemplate outsourcing this part of the project, as did the available budget. The answer came in the surprising form of aquarium controllers. These controllers are designed to make sure that aquarium fish are not shocked by the sudden switching on of the lights in the morning or the switching off in the evening and allow you to programme a series of sunrises and sunsets across the day.

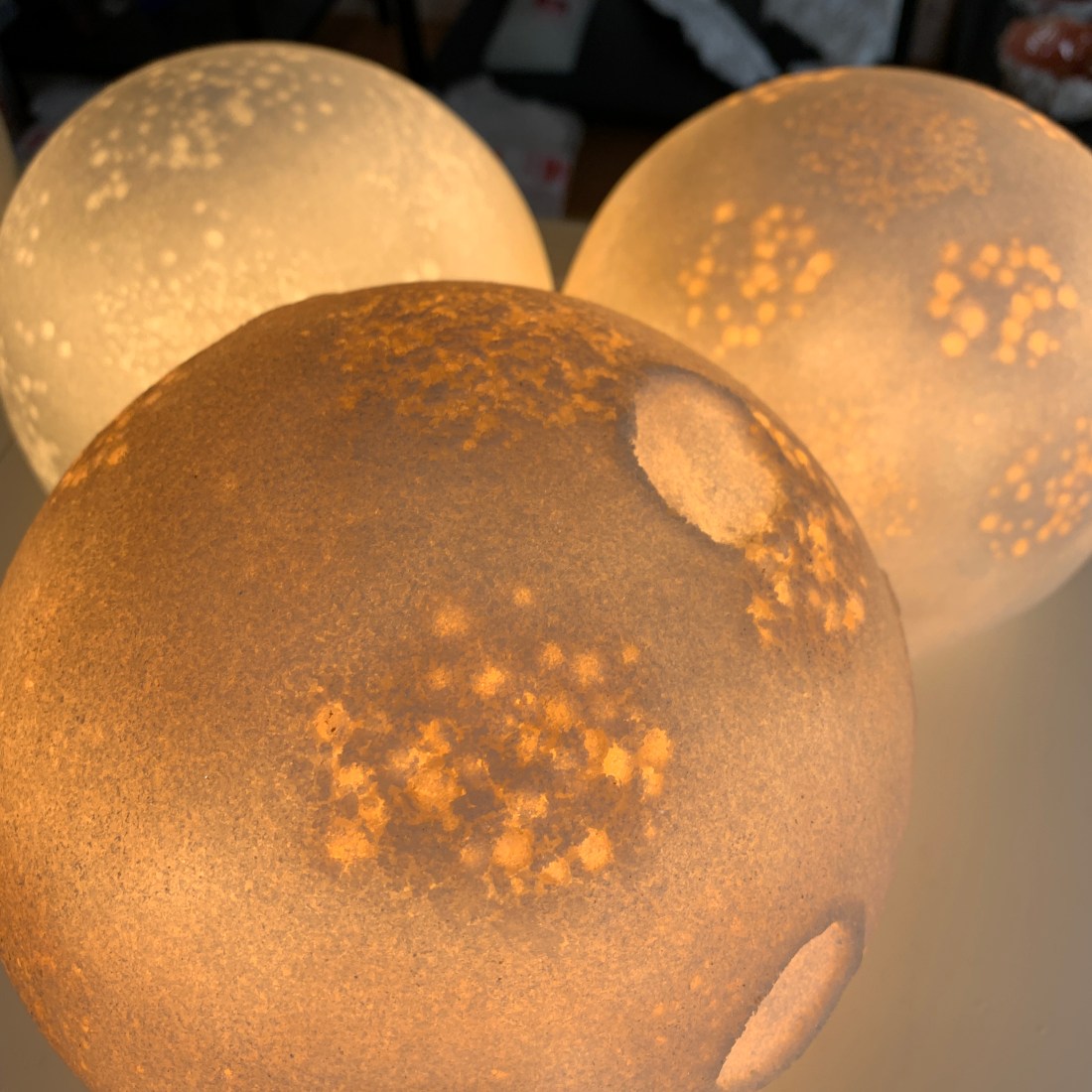

Constructing the stands so that the glass elements were lit internally was initially a case of testing lots of different types of 12V lights of the kind often used for caravans or countertops. Eventually I found some that I was happy with and set about mounting them so that the lights would be correctly positioned within the vesicles. Lots of cases of trial and error as I went along and once again aquarium supplies came to the rescue, this time in the form of clear flexible tubing that holds the lights in the right place.

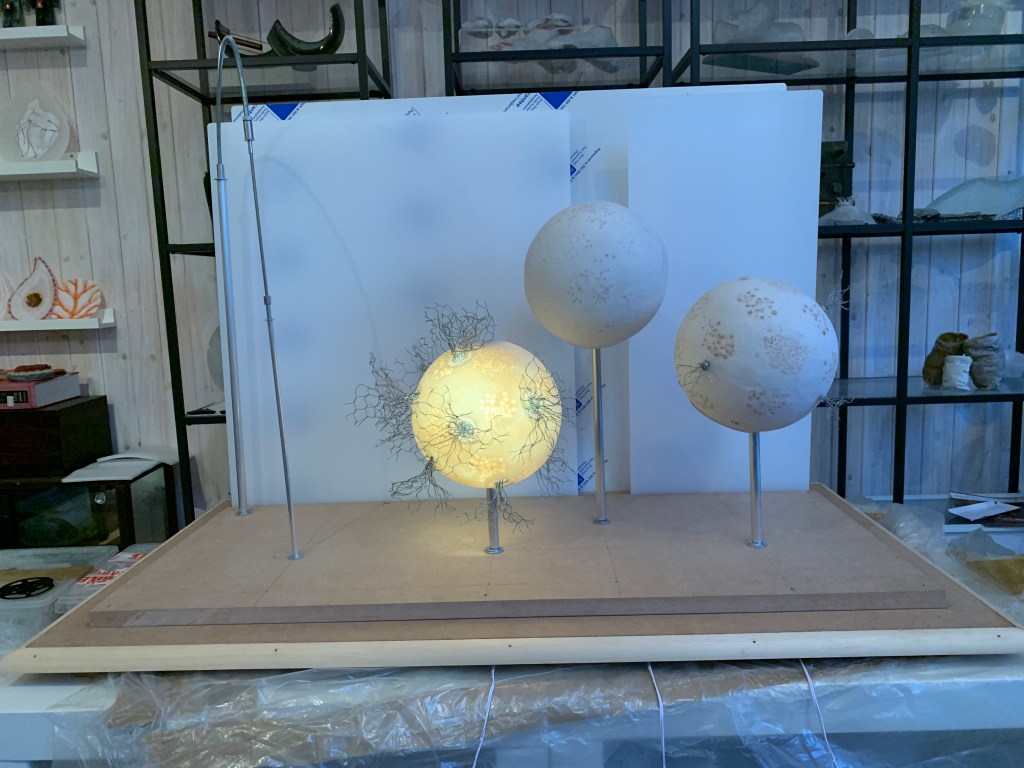

Finally, after wiring, soldering and finishing the full construction of the piece, I could programme the lights in the vesicles. They can each be set to gradually come on at different intensities across the day to draw attention to different parts of the diorama.

Meanwhile, another challenge was to light the Z Stack. I achieved this through feeding an LED strip through the length of the stand I had created for the stack, with holes strategically drilled to let light through. For me, this layered lighting enhances the analogy of the Z Stack itself, and how the microscopy and computation processes build a whole form from slices of data.

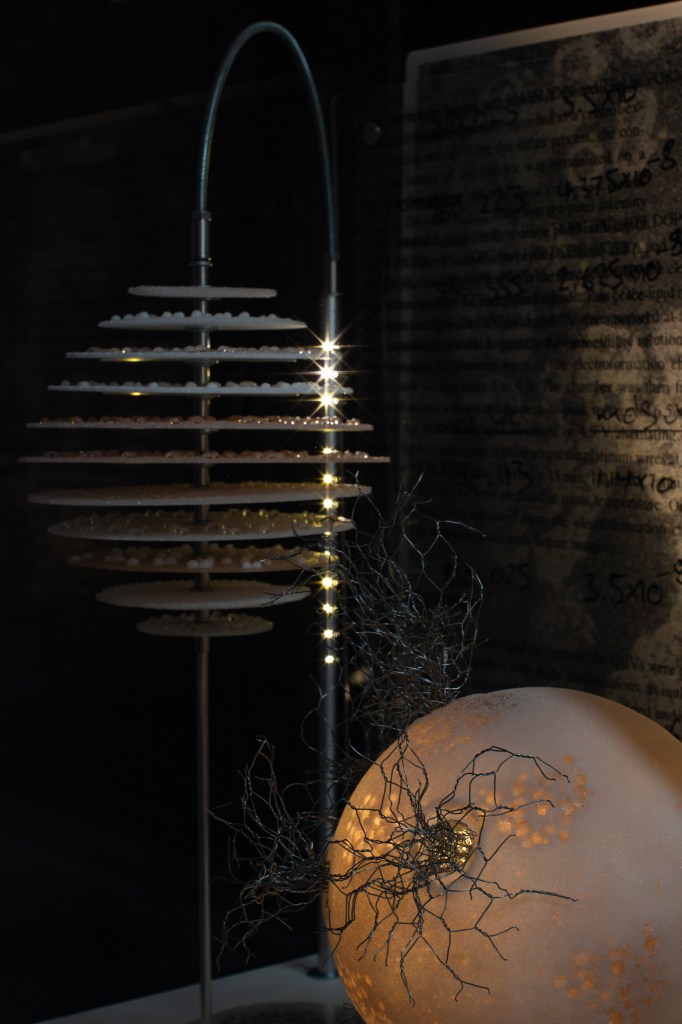

The final lighting for the Z Stack

To see a timelapse of one lighting scheme for the finished artwork, have a look at a forthcoming post of images of the final piece!

The Z Stack

As well as the vesicles, a major glass element of the sculpture was the Z Stack, as I like to call it. This is a form made from ‘slices’ of glass, each with a different colour or texture, that when mounted together suggest a three-dimensional form.

The Z Stack was an element that came to mind very early in the process during my visit to the labs, when Arindam explained to me how the images of the ‘spheroids’ of cells were constructed. The confocal microscope could be instructed to scan multiple layers of a three dimensional object, and would then build an apparently three dimensional image from the slices it had scanned. The number of scans that go into constructing the image would then affect the resolution of the object and also the time to create as well as the ultimate file size.

A non-glass mockup of a Z Stack – my first experiment with the idea

There are two main textural types of slice in the Z Stack – those with ‘miniature vesicles’ on the surface, and those which have a honeycomb structure. The honeycomb is the one reference in the piece to the original source of the peptide, the Amazonian wasp.

I wanted to create an analogue analogy for the Z stack, to create a 3D form from slices, and from that my Z Stack was born. Initially I thought it might be interesting to make the slices ‘floppy’ to accentuate the departure of the analogue from the digital counterpart, but aesthetically I found it confusing and cumbersome. I also wondered about offsetting some of the slices from the horizontal, but again this appeared to confuse the communication of the idea.

In the later stages of construction, I continued to experiment, but this time with the number of slices to see what worked best in creating an outline form. Below is the version with 9 slices.

I ultimately settled on 11 slices as giving the most pleasing form.

Working, working, working

It’s been a long while since I last posted – which is not to say that I haven’t been busy moving forward with the project, just that I’ve been focused on the studio rather than the laptop! So this and future posts will start to bring things up to date, slowly but surely, to the point where I am at present, with all the glass elements made and about to start construction of the piece in earnest.

The first major landmark since the last post was bringing the team up to speed in May with the way I wanted to go with the composition of the piece. Having settled on the idea of a natural history vitrine, I took them through my initial ideas for a diorama based around the developing perforation of a series of vesicles by the peptide.

I felt somewhat hampered by the necessity to have the conversation by Zoom rather than being able to talk in person and bounce about ideas and look at samples; we had initially imagined that I would go back to visit them in Leeds during May, but as lockdown was still very much in place, that was not an option. So Zoom it was.

I constructed a brief presentation to take Paul, Andrew and Arindam through my thinking and to show them some of the samples that I had been making. It culminated in a rough and ready construction collage of the basic elements of what I was proposing. Here are the slides from the presentation to give you a sense of what I was thinking. There’s no text, so it’s not totally self-explanatory, but it does give a sense of the elements that were coming together in my thinking in May.

We had some great chat as a result of talking through my ideas which have led to more concrete developments. Arindam uploaded some images for me from his research process – some spheroid experiments and some cell images – which i am working on to be a backdrop to the piece. Andrew has provided me with some more of his handwritten calculations, which I want to collage into the backdrop and possibly use in other ways.

In terms of my glasswork, we had some productive thoughts about my ‘Z stack’ element (my very rough prototype is in the image at the top of this post) – which I shall post about separately. We also talked about a potential ‘wasp nest’ element, but agreed that the emphasis needed to be on the science/ research rather than wasps. By the end of the conversation I felt things had definitely moved phase from ‘what am i making’ to ‘how will i make it’. So I went on from there to making vesicles – more of that to come soon!
